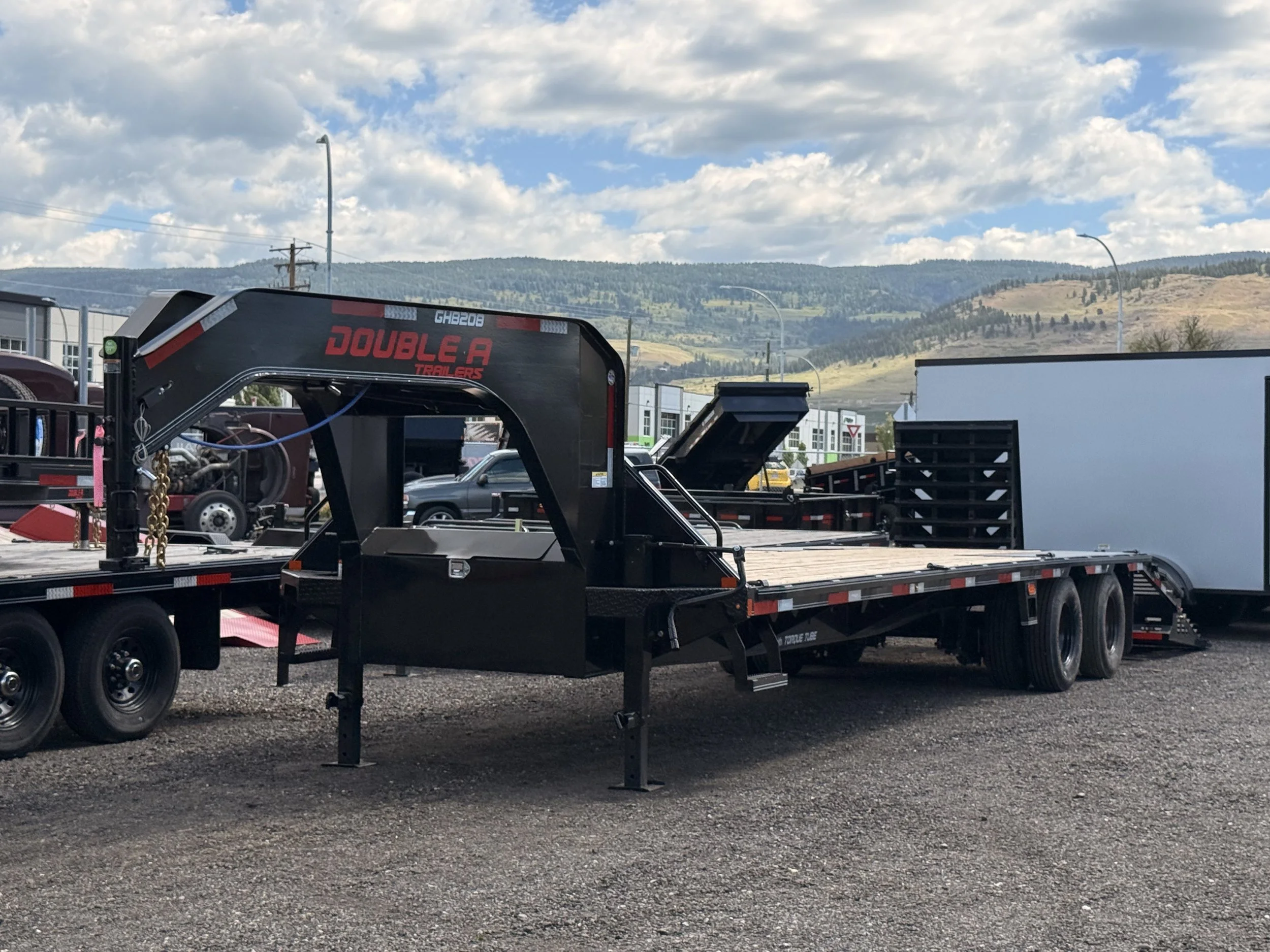

Make Double A

Model GHB208-30 (25ft plus 5ft BT)

SALE Price $26,880 plus tax

General Information

Specifications

Empty Weight: 7000 lbs

Axle(s): (2) 10000lb Oil bath Axles

GVW: 25,000lb

Brakes: Electric

Black in Colour

Upgrades Include
HDSS (Heavy Duty Adjustable Suspension)
14 Ply tire upgrade
14 Ply spare tire
5ft BT Conquer ramps (sprin assist)
Engineered Neck and Main Beam
8 Weld on D rings

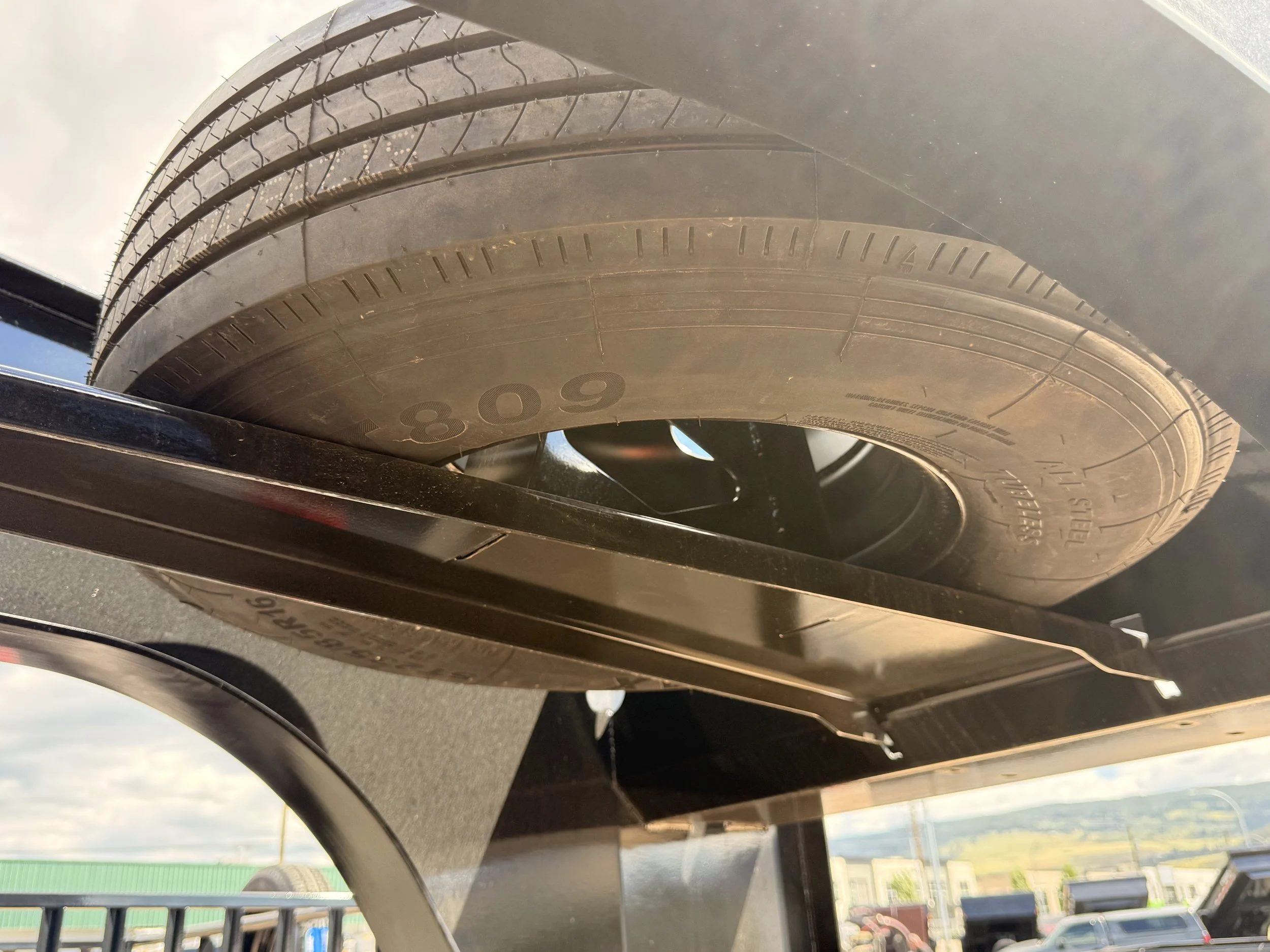

Fold up Spare Tire Mount

FURTHER FEATURES

• Made in Canada (Alberta)

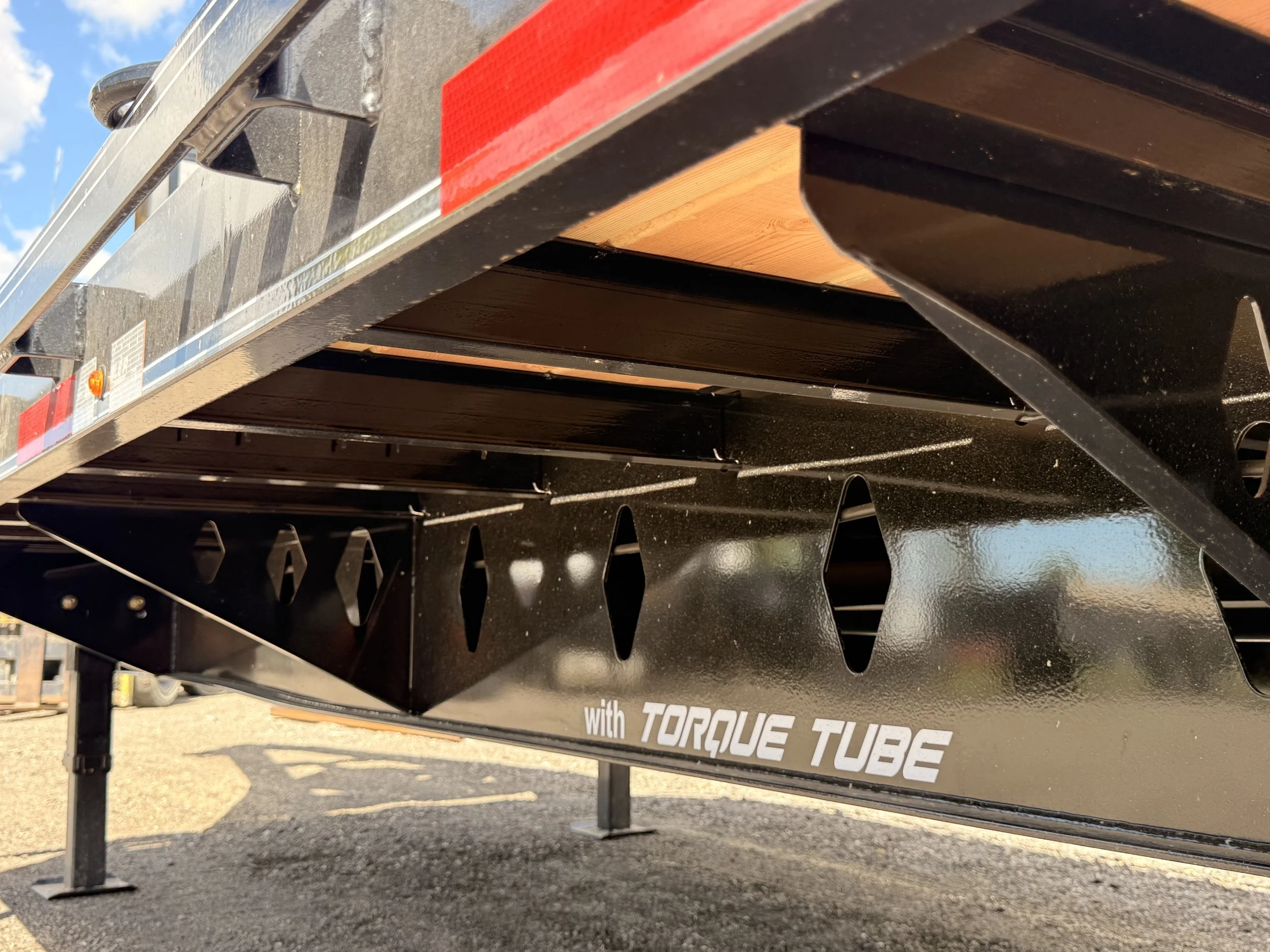

• Engineered Beam Main Frame & Neck

• 3" Channel Crossmembers on 16" Centers

• 5''Lace Rail with Pockets and Rub Rail

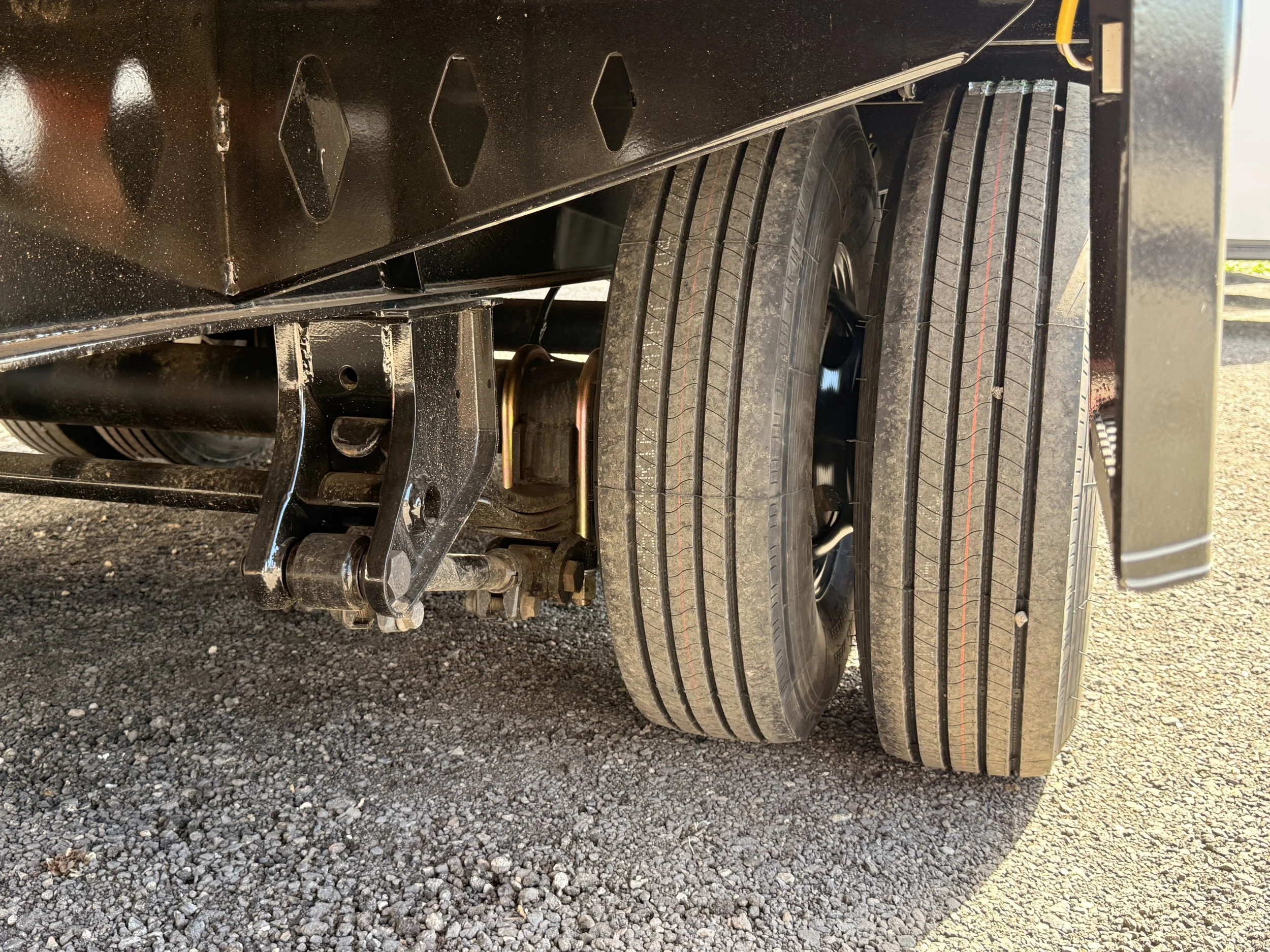

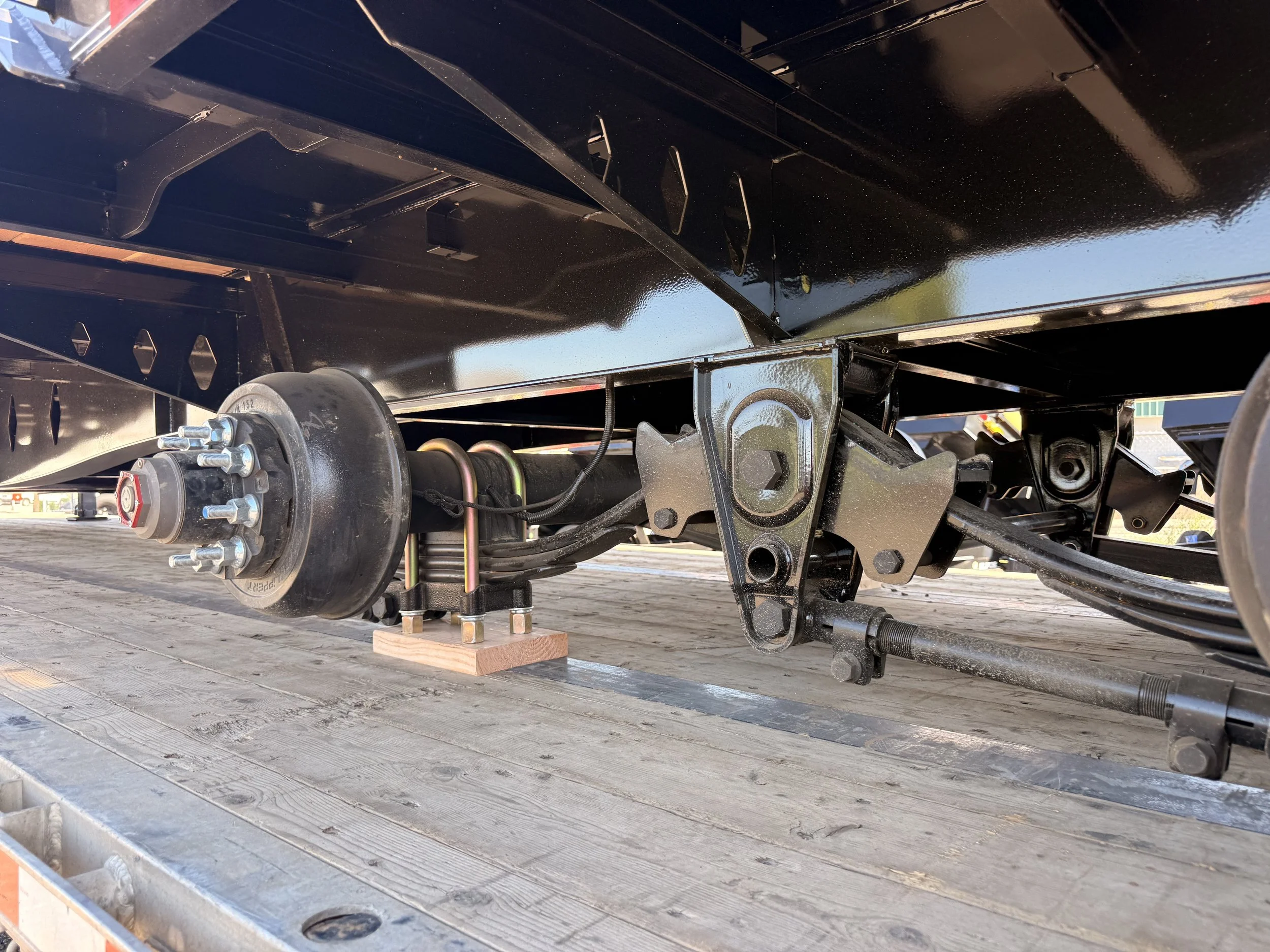

• (2) 10,000# HDSS Suspension, Oil-Bath Hubs

• Electric Brakes

• 235/85R16" Radial Tires

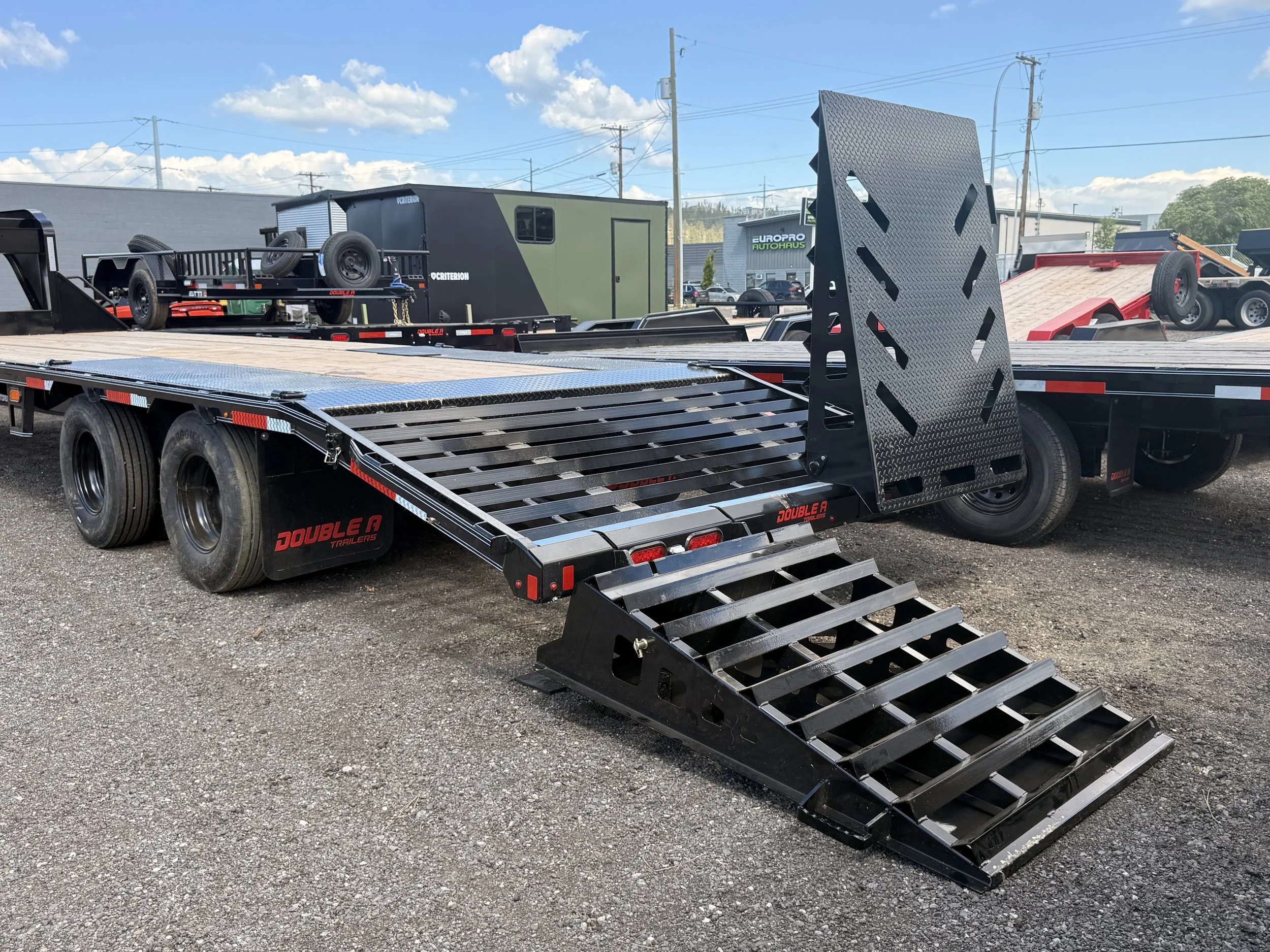

• 5' Beavertail Flip-Over Ramps w/ Spring Assist

• (2) 12,000# Jacks

• Heat Treated Douglas Fir Decking

• Rubber Mounted LED Lights

• -65C Arctic Rated Wiring Harness

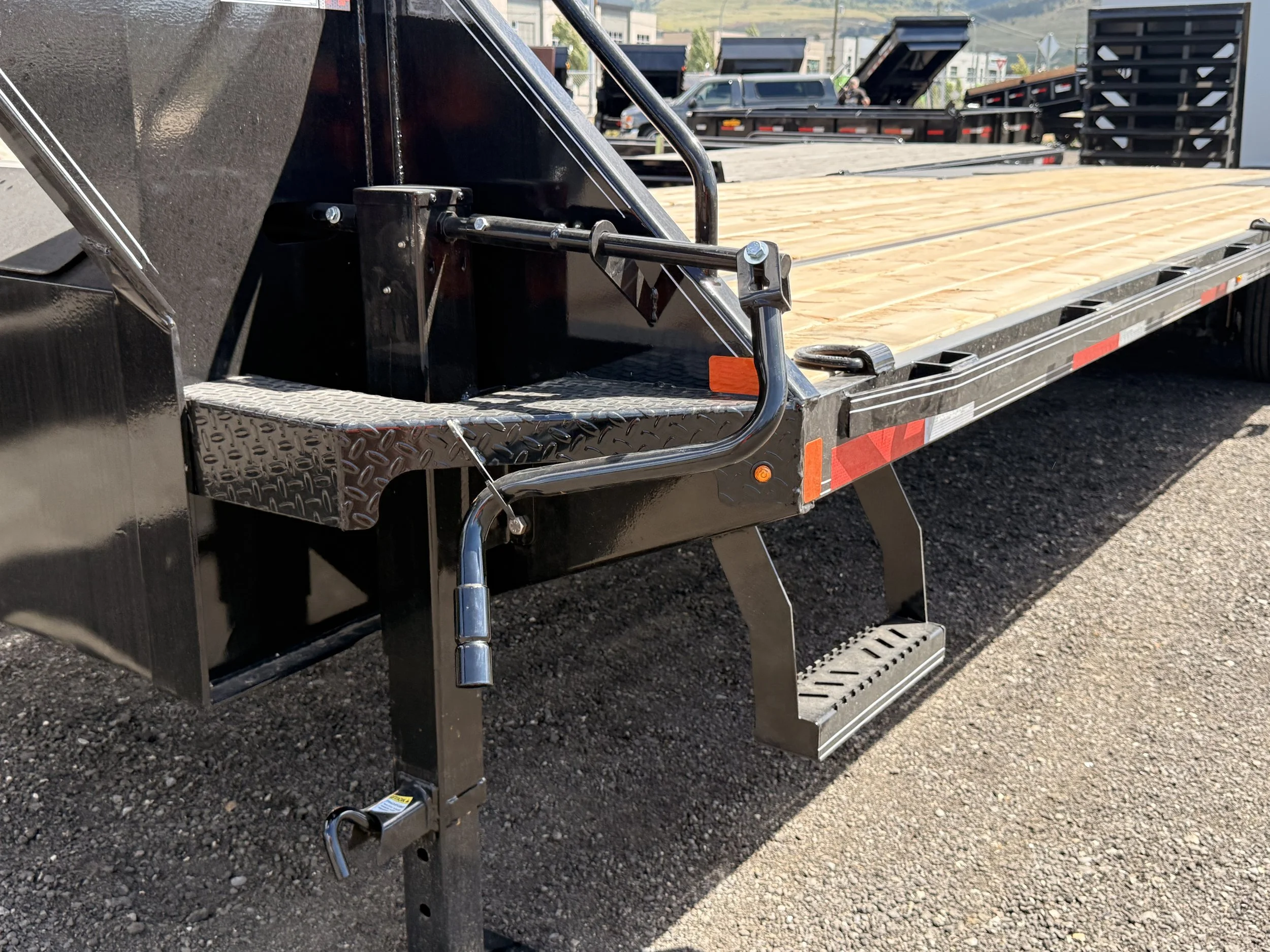

• Steps with Grab Rails on Each Side

• 6-Stage Powder Coating Process

• Step 1: Steel-Shot Blasting

• Step 2: Phosphate Metal Pretreatment Wash & Rinse

• Step 3: Forced Air Dry-Off Oven

• Step 4: Zinc Epoxy OneCure Primer

• Step 5: Sherwin Williams OneCure Powder Topcoat

• Step 6: Oven Cured at Over 425 Degrees
